High Light: | single screw plastic extruder,plastic pipe making machine |
---|
CE & ISO Single Screw Extruder , PPR Pipe Production Line 75mm - 160mm
Quick Detail:
The PPR pipe machine is mechanotronics, with the advantages of:
1. Modern technology
2. Optimized design
3. High output
4. Stable plastification
Description:
Specifications:
Model |
SJGZ-63 |
SJGZ-160 |
Extruder |
SJ65 |
SJ90 |
Pipe range(mm) |
16-63 |
75-160 |
Screw diameter(mm) |
65 |
90 |
L/D ratio |
33:1 |
33:1 |
Max output(kg/h) |
~120 |
~300 |
Linear speed(Max,m/min) |
12 |
4 |
Main motor power(kw) |
37 |
110 |
Competitive Advantage:

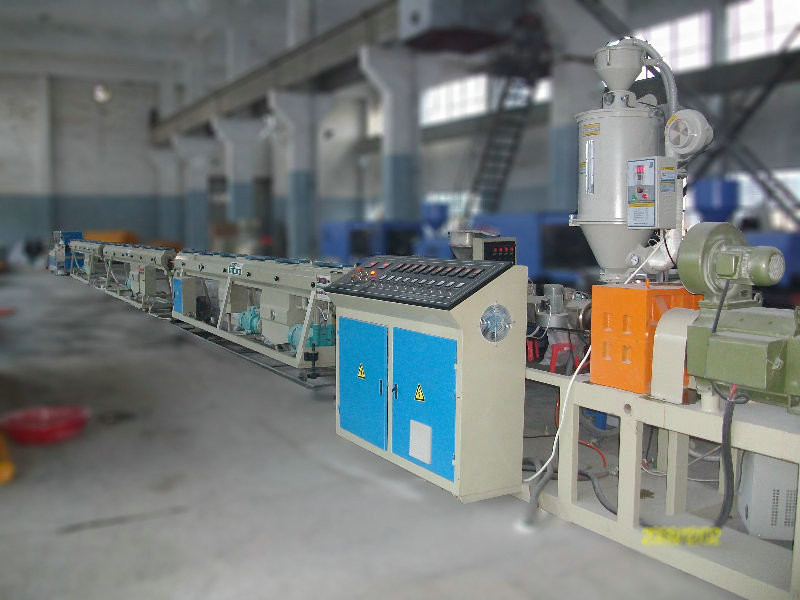

This PPR pipe production line mainly consists of controlling system,extruder,die,calibration system,haul-off and cutting device,printer,stacking device and winder. The special designed spiral basket structure of the extrusion die, ensures the flow distribution equally.The calibration system and cooling system guarantee the high quality of the plastic pipes.
Applications:
This PPR pipe production line can produce PP-R pipe,PE-RT pipe,PEX pipe. PP-R pipe is non-toxic,healthy,heat-resistant and have good performance of warm keeping, it is convenient for welding and can also be recycled. PEX pipe has good character of high and low temperature resistant. Different from PEX, PE-RT don't need to crosslink but can be recycled and convenient for processing with the character of heat-resistant and better stability.
PPR pipe machine, pipe production line, single screw extruder
