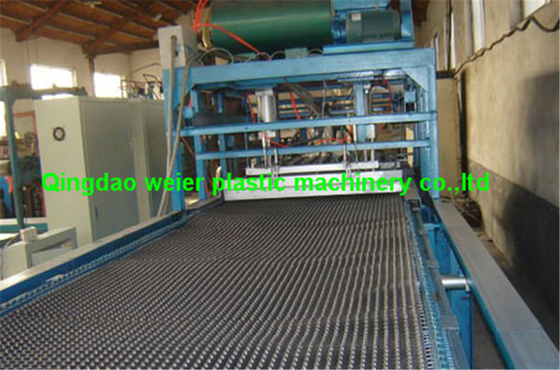

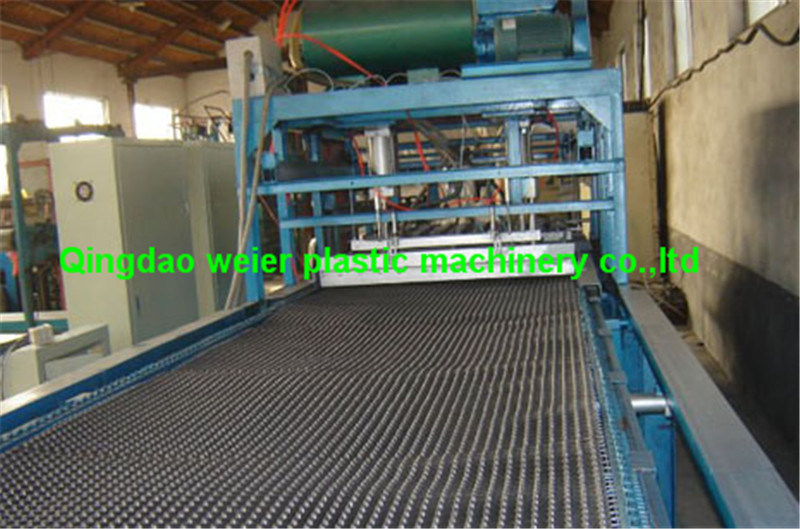

HDPE / PE Plastic Sheet Extrusion Line For Drainage Sheet 90kw SJ-120

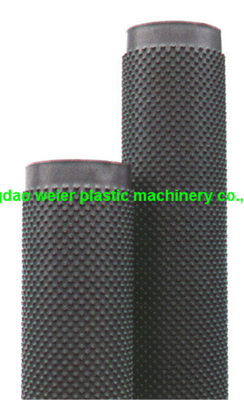

Discreption of HDPE/PE drainage sheet production line

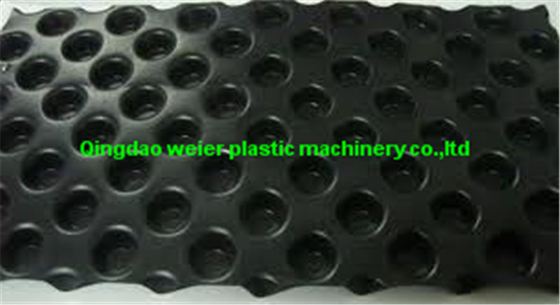

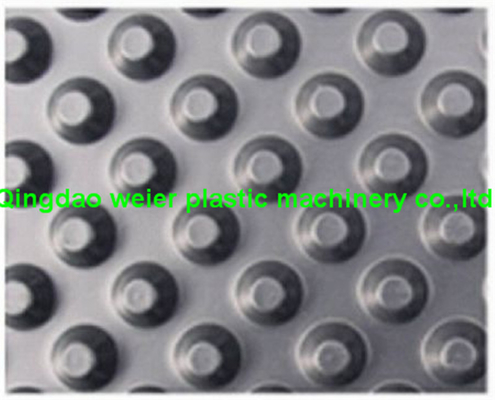

1.These dimples, in spatial structure with certain height ,can resist long-term high pressure without deformation.
2.The air gap prevents hydrostatic pressure building up . The water runs down the outer surface towards the drain.
3.On the top of the dimples,there is usually filtration geotextile to make sure the drainage channel runing well without any block for any articles,for example,filling particles or concrete.
Main technical parameters of HDPE drainage sheet extrusion machine
Type |
SJ-1400 |
SJ-2200 |
SJ-2500 |
Main motor |
SJ-90 |
SJ-120 |
SJ-150 |
Screw diameter(mm) |
90 |
120 |
150 |
L/D ratio |
25:1/30:1 |
25:1/30:1 |
25:1/30:1 |
Motor power(kw) |
55 |
90 |
132 |
Control method |
Frequency covertion |
||
Move method |
Whole move |
||
Width(mm) |
1000 |
1500 |
2000 |
Quencher roller cooled medium |
Water |
||
Asphalt heating medium |
Conduct heat oil |
||
Total power(kw) |
82 |
156 |
228 |
Generally Equipment consists list for HDPE drainage sheet making machine
1 |
SJ-150/33 single screw extruder |
One unit |
2 |
Hydraulic mesh changing system |
One unit |
3 |
Die mold |
One set |
4 |
Electric control system |
One set |
5 |
Forming machine |
One set |
6 |
water temperature regulator |
One set |
7 |
Cooling transition bridge |
One set |
8 |
Haul off machine |
One unit |
9 |
Length Measurement |
One unit |
10 |
Cutting unit |
One set |
11 |
winder |
One set |
12 |
Extruder vacuum feeding machine |
500kg/hr 1unit |
13 |
Driers |
200kg/hr 1unit |
14 |
Color mixer |
500kg/hr |
Applications of HDPE drainage sheet:
· Retaining Walls
· Basement Walls
· Tunnels and landfills
· Reduction in hydrostatic pressure behind retaining structure
· Additional protection to waterproofing membranes
· Horizontal drainage for rooftops and planter box
Why choose Weier ?
1.We supply all the technical support,such as engineers,drawings,and instruction manual.
2.We send one or more than one engineers to client for installing and adjust all the machinery
3.Buyer also can sent workers to our workshop for learning how to conduct Plastic extruder
4.Supply formula guide service and staple raw material purchase.
5. We could supply the Feasibility Analysis Report for the project.
6.We could supply turnkey project to you.
Welcome to visit our factory for HDPE drainage sheet equipment!!!
