High Output Plastic Sheet Extrusion Line For PVC Siding Panel , SJSZ-65 / 132

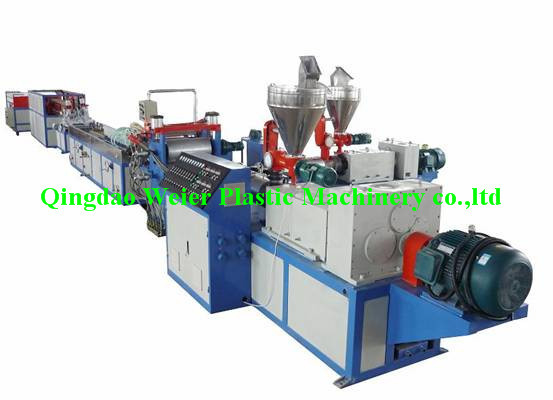

PVC Siding Panel Production Line

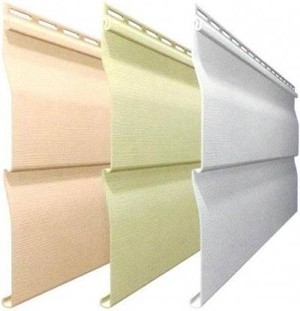

PVC vinyl Siding panel is applied in house, office building, villa, and wall protection. Due to it`s top layer covered with PVC, ASA, or PMMA, it can be used in hot, cold dry or wet place, can bear long time sun light, wind, rain and bad weather.

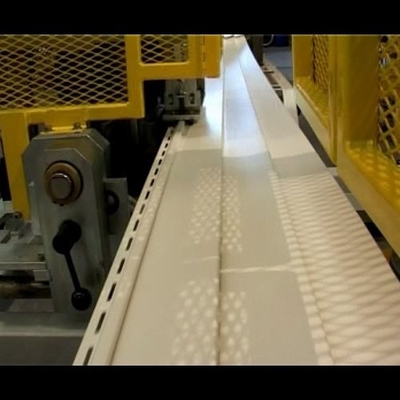

This line can be equipped with different pattern rollers, easily changeable. Punch on-line, it is more economical way.
As per customer's request, it also can be equipped with rolling machine, printer, coding machine and so on. We can supply ordinary speed (6~8m/min) and high speed(10~20m/min) production line.
Specification and model of Vinyl Siding Panel machine/Line :
Specifications |
SJZ65/132-SZJ45/100+YF400 |
SJP90/32-SJZ55/110+YF400 |
Max.Product Width(mm) |
400 |
400 |
Max. Traction Height(mm) |
100 |
100 |
Traction Force(N) |
2 |
2 |
Traction Speed(m/s) |
1-8 |
1-15 |
Total Power(Kw) |
75 |
110 |
Discreption of PVC Siding Panel Production Line
Applications: The production are mainly used in external-wall decoration adequate for the luxury apartments and wooden buildings.
Easy to install and use, the structure is reasonable and compact.
Double layers co-extrusion,
outer layer is anti-aging.
Extrusion speed: 6-20m/min.
Parameter of PVC Siding Panel Production Line
Item |
Description |
Parameters |
1 |
Material |
Recycled PVC, with Auxiliary material |
2 |
Window sills size |
Width: 600, 700, 800mm and smaller |
3 |
Production line speed |
0.5-1.5 m/min |
4 |
Max. output |
280kg/h |
5 |
Covering area of whole line |
23m × 2.5m × 3m L×W×H |
6 |
Total power installed for the whole line |
185KW |
7 |
Actual power consumption |
125KW (Approx.) |
