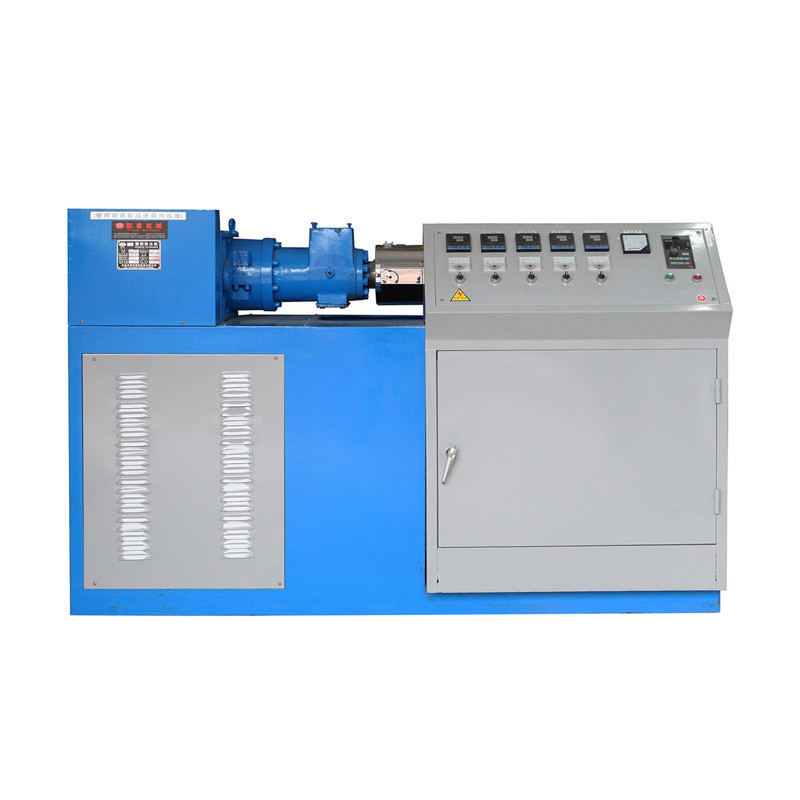

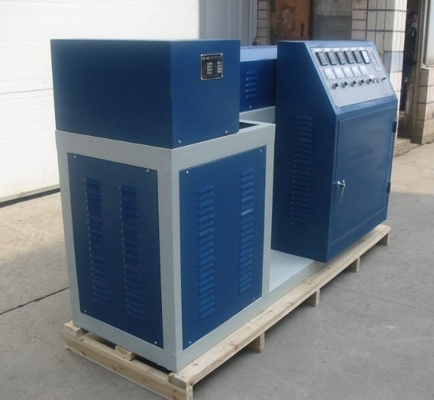

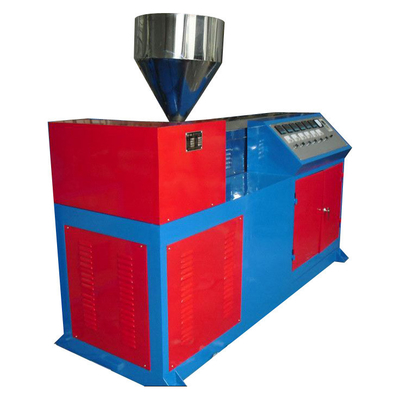

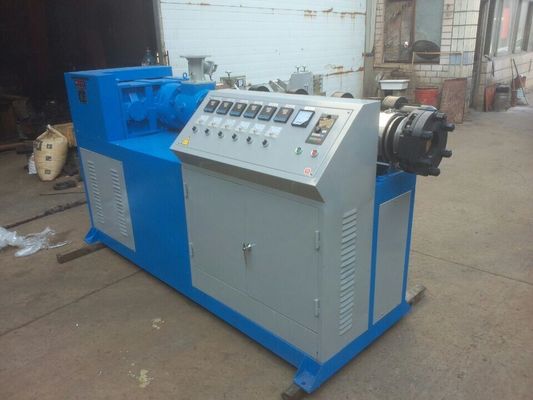

new condition long life plastic extrusion machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  new condition long life plastic extrusion machine Get Best Price

Product Details:
Place of Origin: Yuyao,NIngbo,Zhejiang
Brand Name: GuoTai
Model Number: SJ50
Brand: GuoTai
Warranty: 1 year
voltage: 380V/50HZ/3P
material: PP/PE/PVC/HDPE/LDPE
motor power: 11kw
Inverter: HOLIP
Elements: DELIXI
capacity: 50kg/h
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: FOB Ningbo
Packaging Details: wooden bottom package
Delivery Time: 30days
Payment Terms: 30% TT in advance, the balance before delivery
Supply Ability: 500sets/month
Detailed Product Description

Extruder
Plastic Extruder manufacturing plant
Application:
This kind of extruder has wide application. Adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules

Specifications
Plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption

The characteristics:
1) Installed with imported termo controllers, imported inverters or converters.
2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3) For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5) We also can provide a variety of exhaust-type extruder


Main technical parameter:

Mode

Screw Dia.

Length to

 diameter

Rotational

Speed of screw

Height of center point

Capacity



Drive Power



 SJ-30/25CY

30mm

25:1

 10-160r/min

1000mm

  19.5kg/h

2.2kw,3kw

 SJ-45/20HY

45mm

20:1

 10-90r/min

1000mm

  22.5kg/h

5.5kw

 SJ-45/25CY

45mm

25:1

 16-160r/min

1000mm

  35kg/h

7.5kw,11kw

SJ-45/28CY

45mm

28:1

16-160r/min

1000mm

40kg/h

7.5kw,11kw

 SJ-45/25HY

45mm

25:1

 16-160r/min

1000mm

  35kg/h

11kw

 SJ-50/25HY

50mm

25:1

 16-160r/min

1000mm

  40kg/h

11kw,15kw

 SJ-65/25HY

65mm

25:1

 8-80r/min

1000mm

  100kg/h

18.5kw

 SJ-65/28CY

65mm

25:1

 15-120r/min

1000mm

  100kg/h

18.5kw,22kw

 SJ-65/28HY

65mm

28:1

 16-160r/min

1000mm

  120kg/h

22kw,30kw

 SJ-65/30CY

65mm

30:1

 15-120r/min

1000mm

  120kg/h

22kw,30kw,37kw

 SJ-65/34CY

65mm

34:1

 15-120r/min

1000mm

  120kg/h

22kw,30kw,37kw

 SJ-70/25HY

70mm

25:1

 8-80r/min

1000mm

  120kg/h

22kw

 SJ-90/25HY

90mm

25:1

 10-100r/min

1000mm

  155kg/h

30kw,45kw,55kw

 SJ-120HY

120mm

25:1

 30-90r/min

1000mm

  250kg/h

75kw

new condition long life plastic extrusion machine 0

new condition long life plastic extrusion machine 1

new condition long life plastic extrusion machine 2

new condition long life plastic extrusion machine 3
