PE Spiral Plastic Pipe Extrusion Machine / Production Line With High Efficiency
Quick Detail:
The PE spiral plastic pipe extrusion machine is mechanotronics, with the advantages of:
1) high production efficiency;
2) reasonable structure compact;
3) convenient operation and maintenance
4) long use life etc.
Description:
The PE spiral plastic pipe extrusion machine is used to produce carbon-fiber pipe which is composed by PE and Carbon. Regarding special structure and constituting of specific raw material, Carbon-fiber Pipe is the perfect replacement of cast-iron pipe, rubber hose, PVC tube, widely used in many areas, such as agricultural irrigation (suction drainage), protection of cable etc.
Competitive Advantage:
The PE spiral pipe with carbon fiber production line has characteristics of compact conformation, good appearance and high efficiency. By adopting high performance extruder and automation system, it runs stably and produces high quality pipes.
Specifications:
Model |
BLT -LXG65/25 |
BLT-LXG90/25 |
Extruder |
SJ65/25 |
SJ90/25 |
Pipe range (mm) |
40-100 |
90-200 |
Output (kg/h) |
15-50 |
100-250 |
Main drive motor (kw) |
18.5 |
55 |
Dimension (m) |
9×4×1.4 |
11×4.5×1.8 |
Applications:

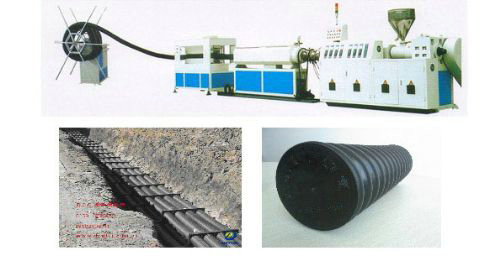

This pipe production line is mainly used to produce PE spiral pipes which are widely used as protecting sleeves of optic or electric cable, and they are increasingly used in fields of electricity, telecom, post activities, constructions of express way and port.
These pipes are characterized by high intensity and tenancy, erosion resistance, constant shape and easy transportation and execution.
They can be processed and bent into long pipes with various radians, Owing to these advantages, they are very popular with clients engaged in many fields.
