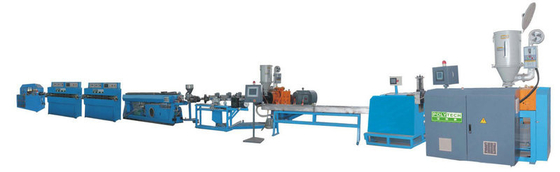

Plastic Embedded Drip Irrigation Tube Extrusion Line 150 - 200m/Min With Single Screw Extruder
Quick Detail:
The drip irrigation plastic pipe extrusion line is mechanotronics, with the advantages of:
1) high production efficiency;
2) reasonable structure compact;
3) convenient operation and maintenance
4) long use life etc.
Description:
Drip irrigation plastic pipe extrusion line included two extruders, one for the inner strip and another one for the outer pipes. The inner labyrinth strip was extruded same time with the outer pipe and welded together by the particular press device. The advantages of this line is fast cooling with high speed and precise processing, the stable speed was up to 150meters/min.
Specifications:
Extruder |
SJ65/33 SJ75/33 |
Extrusion speed |
150-200m/min |
Punching frequency |
Max300pcs/min |
Inserting speed of dripper |
Max350pcs/min |
Drive motor |
90kw |
Machine weight |
5000kg |
Center height |
1200mm |
Machine Size |
25*3*1.2m |
specification of the drip irrigation tape(Can be customized according to design) |
|
Working pressure |
0.01-0.1 |
dripper space |
100-150-200-250-300-330-500mm |
Dripper specification |
DN6.8, DN 12, DN 16, DN 20 |
wall thickness |
0.15-0.6mm |
|
0.85-1.2-1.5-1.8-2.2-3.0 H/L |
Applications:
The Embedded labyrinth drip irrigation tube extrusion line is mainly used in the production of labyrinth drip irrigation pipe,which is widely used in greenhouse cash crop, farmland cash crop and economic trees' irrigation, such as irrigation for vegetable, flower and plant, tea garden and fruit
Application effect is excellent:
1. Water saving, fertilizer save and labor saving
2. Control the earth surface temperature and humidity, reduce insect pests' damage
3. Keep the soil structure
4. Improve the quality, increase production and synergy
Competitive Advantage:
