Product Details:
Payment & Shipping Terms:
|
Plastic Processed: | XPS | Production Capacity: | 280kg/h |
---|---|---|---|
Product Width: | 600-900mm | Product Length: | 1200-2500mm |
Drive Motor Power: | 90kw | ||
High Light: | wood plastic composite production line,wpc foam board machine |

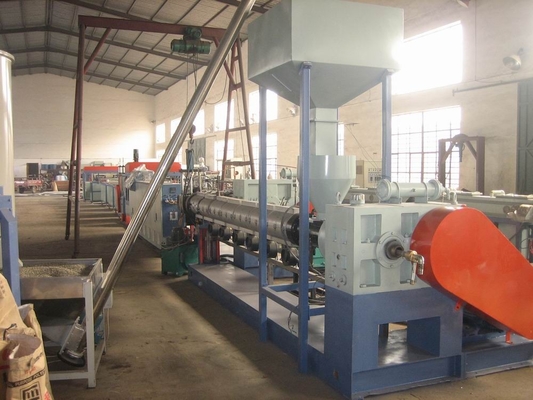

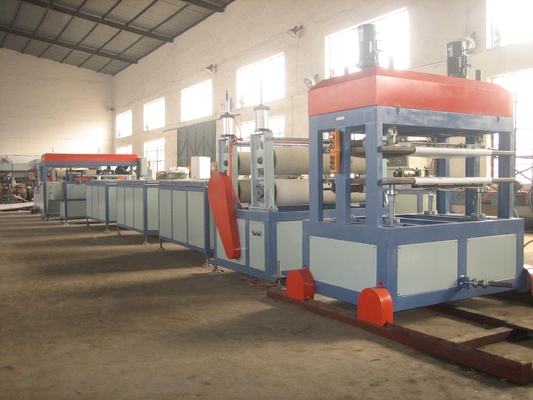

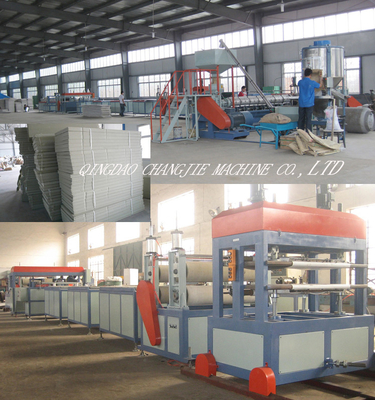

Plastic XPS Foam Board Production Line , XPS Foam Board Extrusion Machine
Quick Detail:
XPS foam board production line
Product width:600-900mm
Product length:1200-2500mm
XPS foam board extrusion machine / XPS foam board extrusion line / XPS foam board making machine
Description:

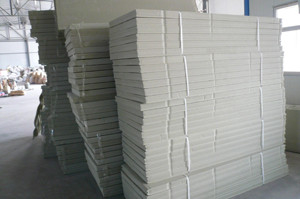

XPS extrusion polystyrene foam board, also known as the extruded polystyrene board (XPS), has a perfect obturator honeycomb structure, its density, water absorption, coefficient of thermal conductivity and so on steam permeability coefficient is lower than other types of tabular heat preservation material, thus has good intensity, light material, airtight, anticorrosion, aging resistance, low price, etc, are widely used in heat preservation and heat insulation construction, highway, railway, airport, square of the anti-freezing heat preservation, home decoration and other fields, is currently the market recognized the best thermal insulation material. Used for steel structure workshop, sheet metal housing and colour wave tile, have heat preservation effect; To make heat plate freezer, cold insulation, waterproof;
Applications:
Used for MATS under the highway subgrade, buffer control ground frost heave; Used in residential buildings, office buildings, factories, walls and roof waterproof thermal insulation; Used for bedding on the floor below, have the effect of heat insulation, moisture-proof, sound insulation; Used for central air conditioning ventilation pipes, heat insulation, heat preservation effect.
Specifications:
Technical parameter
Extruding system |
unit |
First machine |
Second machine |
Screw Diameter |
mm |
Ф120 |
Ф150 |
L/D |
L/D |
36 |
36 |
Heating section |
group |
9 |
12 |
Heating power |
KW |
45 |
80 |
Drive motor power |
KW |
90 |
60 |
Product thickness |
mm |
20,25,30,40,50,60 |
|
Product width |
mm |
600,900 |
|
Product length |
mm |
1200,1250,2450,2500 |
|
water consumption |
m 3 /h |
10 |
|
compressed air |
m 3 /h |
0.1 |
|
Volume of produvt |
kg/m 3 |
35-55 |
|
production capacity(about ) |
kg/h |
280 |
|
boundary dimension (about) |
m |
40×6.2×3.8 |
|
machine weight (about) |
T |
16 |
Competitive Advantage:
XPS insulation board, is a mixture of polystyrene as the main raw material by the formula by the extruder into continuous uniform extrusion foaming agent close your empty plate type honeycomb structure, its uniform foam, bubble hole is exquisite, high compression strength, size stability and compressive strength of excellence (150-700 - kpa) moisture, not bibulous, convenience of construction, can be widely used in roofing and wall heat preservation and heat insulation, civil engineering and construction for highway, refrigerator floor, wall and composite sandwich insulation board, etc. New type of building thermal insulation, heat insulation, sound insulation, cold insulation materials, because it has excellent thermal insulating properties, can completely replace the traditional EPS foam plastic, PU polyurethane foam plastic, perlite, etc., has a broad market prospect.
Our Machines CE certification:
Our Company Service:
Pre-sale service:
•We provide presales service in various forms, for example, making investment budget,manufacturing,planning, etc. so that customers make a reasonable plan with less cost.
•Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
•Plant Planning: We provide the mounting dimension of the equipment base,design of equipment layout, workshop ventilation, water transmission etc.
• Offer information of peripherals
In-sale service:
• Detailed design of lay-out that is the position of the procession
• Technological information of provided products
• Schedule about design,manufacturing and installation
• Working & Producing progression
•Training course for the technician so that the installation is safe and standard
After-sale service:
•For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
•We will answer customer's question on technology in time. If needed, we will offer on-site guidance and assistance.
•We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
• We will prioritize the product upgrade of former customers.
Our Overseas Customers:
Our Company Competitive Advantage:
A. With 13 years specializing in producing plastic extrusion machines
B. Strong enterprise innovation, with groups of professional engineers and salesmen
C. Our high quality but low prices have gained market and public praise from domestic and overseas clients
D. We have very good and comprehensive after-sales service
E. We have no MOQ for clients and tailor-made to clients' request
F. We can also customize to your own plastic extrusion machine as long as you tell us how to do by idea, then we put your ideas into real products.
