Shock Resistance PE Construction Formwork Plastic Extrusion Machine
Quick Detail:
The PE construction formwork plastic extrusion machine is mechanotronics, with the advantages of:
1) high production efficiency;
2) reasonable structure compact;
3) convenient operation and maintenance
4) long use life etc.
Description:

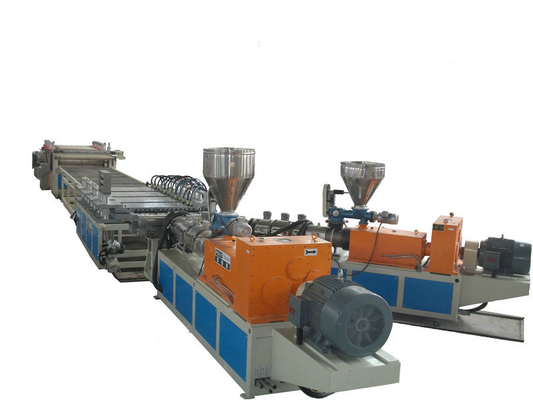

The PE construction sheet extrusion machine consists of single-screw extruder, feeding machine, flat T-die, three-roller calendars, supporting roller cooling device, edge trimming unit, and unloading table.
Specifications:
Main extruder |
SJ120/33,SJ90/33 |
SJ120/33 |
Width of finished product |
915/1220 mm |
915/1220 mm |
Thickness of finished product |
(8-25)mm
|
(8-25)mm
|
Max output |
550kg/h |
450kg/h |
Main drive motor |
160kw,75 kw |
110kw |
Applications:
Plastic construction formwork is a new type of construction formwork produced by recycled PE material, coal ash, calcium carbonate and other fillings. It can replace steel and bamboo construction formwork, as well as be used as composite plate in combination with wood plate, aluminum plate.
Plastic construction formwork has following feature:
1. low cost
2. can be reused for over 100 times
3. recyclable waste materials
4. water proof
5. extended service life
6, recovery, non-layered
7. mpact resistance
8. shock resistance and anti-corrosion.
