hdpe water supply pipe extrusion machine
1. Pipe diameter: 16-1600mm
2. Pipe useful: water and gas supply
Process flow for pe pipe production machine

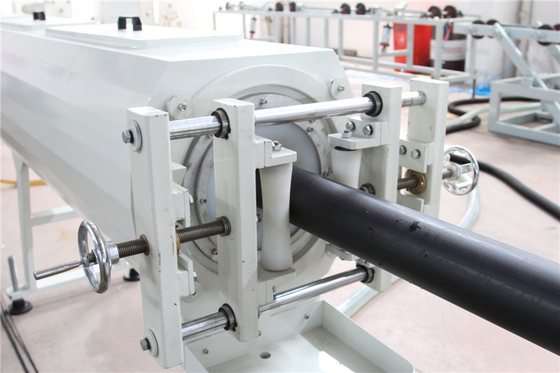

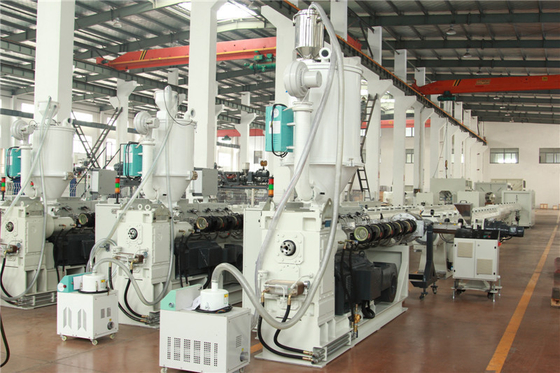

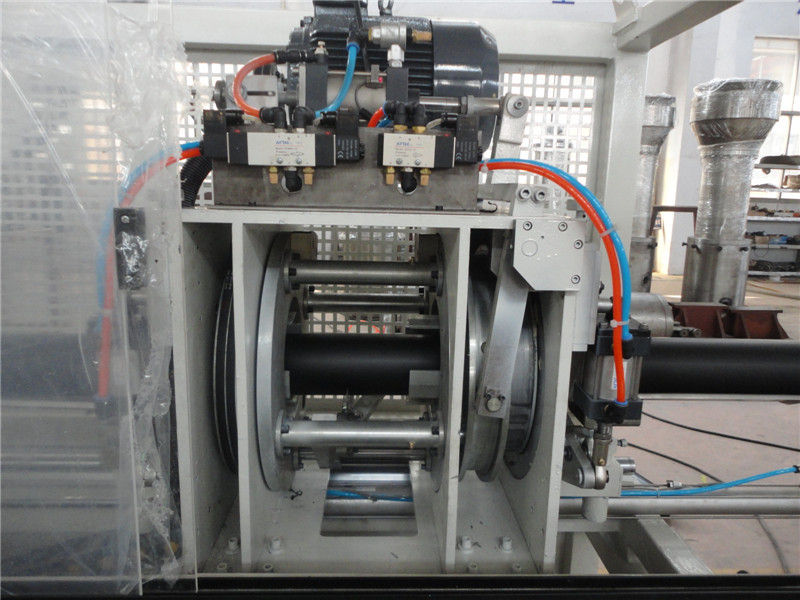

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker
Characteristics for pe pipe production machine
Description for pe pipe production machine

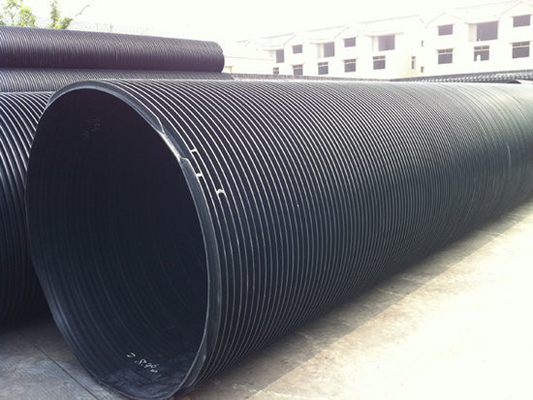

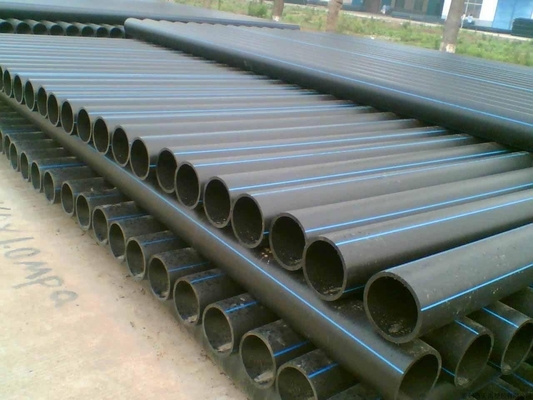

This pe pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems
Main technical specification:
Model |
Pipe spec(mm) |
Extruder |
Max. output(kg/h) |
Total power(kw) |
PE63 |
φ20-63 |
SJ65/33 SJ25/25 |
120~150 |
110 |
PE110 |
φ20-110 |
SJ65/33 SJ25/25 |
120~150 |
110 |
PE160 |
φ63-160 |
SJ75/33 SJ25/25 |
300~350 |
190 |
PE250 |
φ75-250 |
SJ75/33 SJ25/25 |
300~350 |
200 |
PE315 |
φ110-315 |
SJ75/33 SJ25/25 |
300~350 |
230 |
PE450 |
φ160-450 |
SJ90/33 SJ25/25 |
500~700 |
320 |
PE630 |
φ315-630 |
SJ120/33 SJ25/25 |
700~900 |
540 |
PE800 |
φ400-800 |
SJ150/33 SJ25/25 |
900~1200 |
650 |
PE1000 |
φ630-1000 |
SJ150/33 SJ25/25 |
900~1200 |
750 |
PE1200 |
φ710-1200 |
SJ90/33+SJ120/33 150/33 |
900~1400 |
850 |
PE1600 |
φ1000-1600 |
SJ120/33+SJ120/33 150/33 |
1000~1400 |
1150 |
