Product Details:
Payment & Shipping Terms:
|
High Light: | plastic pipe extrusion machine,plastic pipe making machine |
---|

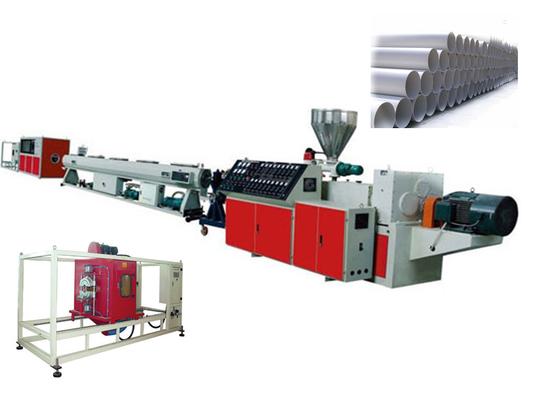

UPVC / CPVC / PVC Pipe Production Line With Conical Twin Screw Extruder SJZS92 / 188
Quick Detail:
The pvc pipe extrusion machine is mechanotronics, with the advantages of:
Specifications:
| Screw diameter | Main motor power | Max output(kg/h) | Calibrating length(mm) | Mode of haul-off | Cutting mould | Pipe diameter(mm) |
SJG-110/50 | SJZS51/105 | 22 | ~180 | 4000 | two rubber belt | saw cutting | Φ50-110 |
SJG-200/160 | SJZS65/132 | 37 | ~250 | 4000 | three rubber belt | saw cutting | Φ160-200 |
SJG-400/250 | SJZS80/156 | 55 | ~380 | 6000 | four rubber belt | planet cutting | Φ250-400 |
SJG-630/400 | SJZS92/188 | 110 | ~600 | 6000 | six rubber belt | planet cutting | Φ400-630 |
Description:
This pvc pipe extrusion machine have following machinery:
(1)SJZS65/132 conical twin screw extruder
(2)Vacuum calibration unit
(3)Haul-off unit
(4)Cutting machine
(5)Stacker
(6)Extrusion mould
(7)Water chiller (for option)
(8)Auto feeding machine(for option)
(9)Printer(for option)
(10)High speed mixer(for option)
Applications:
The UPVC/CPVC pipe production line can produce UPVC/CPVC pipe which is high-intensity,high temperature-resistant,chemical-resistant,insulate and flame retardant. The pipe is the best choice for protect power cable and have good prospects.
Advantage of the PVC pipes:
1. Non-toxic: no heavy metal additives, not be covered with dirt, not be contaminated by bacterium.
2. Corrosion Resistant: resist chemical matters or electron chemical corrosion.
3. Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
4. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
5. Long Life: more than 50 years under normal conditions.
6. Recycled and Environment-friendly.
pipe production line,pvc pipe extrusion machine
