Certificate: | CE, ISO9001-2000 | Drive Power: | 55kw, 110kw, 37 Kw |
---|---|---|---|
Main Extruder: | SJZS-80, SJZS-92, SJZS-65 | Plastic Processed: | PVC, WPC |
Product Name: | Foam Sheet Extrusion Line | Width Of Finished Product: | 915mm,1220mm |
Thickness Of Finished Product: | 5-25mm | Max Output: | 400kg/h , 800kg/h |
High Light: | wood plastic composite production line,wpc foam board machine |

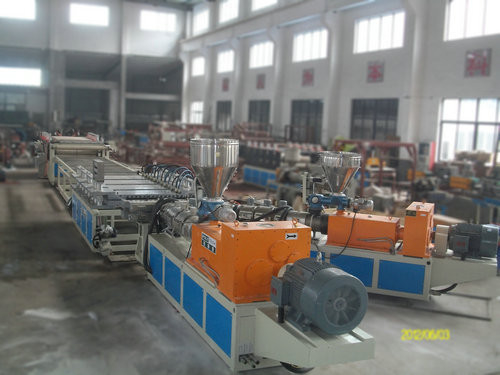

WPC / PVC Foam Sheet Making Machine , Celuka Foam Sheet Extrusion Line
The WPC solid board Extrusion line is mechanotronics, with the advantages of:
1) high production efficiency;
2) reasonable structure compact;
3) convenient operation and maintenance
4) long use life etc.
Description:
making machine, extrusion, extrusion line, production line, WPC machine, extrusion machine, board extrusion line
The WPC solid board can be used in the cabinet, bathroom furniture, construction material, advertising etc.
Specifications:
Main extruder |
SJZS-80/ SJZS-65 |
SJZS-92/ SJZS-80 |
Width of finished product |
915mm,1220mm |
915mm,1220mm |
Thickness of finished product |
(5-25)mm |
(5-25)mm |
Max output |
400kg/h |
800kg/h |
Drive motor |
55kw,37 kw |
110kw,55kw |
Applications:
1 The excellent appearance of the natural wood,
2 It can be cut, paint, bonded and fixed with nails or bolts.
3 The wood-plastic foamed board is mainly used in wall panel, decorating plate, construction formwork, kitchen cabinet, cloth cabinet, bath room cabinet, fence, stair handrail, etc.
Competitive Advantage:

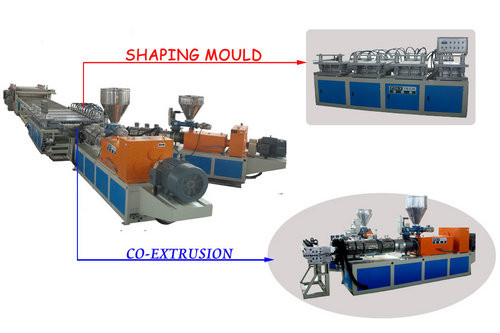

We focus on the co-extrusion technology which keep high output and overcome many operating problems for the one layer board;
The co-extrusion product will be more cost saving and good surface looking;
Our customer can have more choises to make the board accroding their market, one layer or two layer;
The most important is that our machine line can stablely and continously produce.
