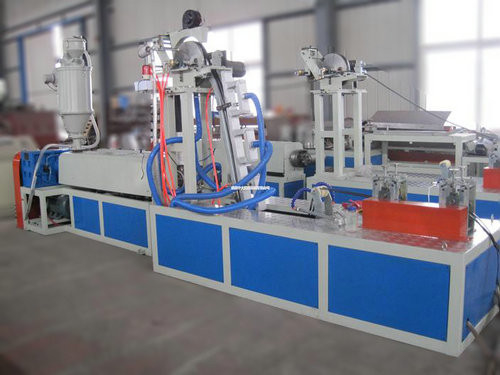

Labyrinth Type Drip Irrigation Pipe Production Line

Labyrinth Type Drip Irrigation Pipe Production Line

Labyrinth type drip irrigation belt production line is mechanotronics, with the advantages of:

1) high production efficiency;

2) reasonable structure compact;

3) convenient operation and maintenance

4) long use life etc.

Description:

extrusion, irrigation, drip irrigation, extrusion line, production line, extrusion machine,  pipe line, pipe making machine, pipe extrusion line, pipe production line

The Labyrinth type drip irrigation belt extrusion line by following parts:

1 extruder

2 drip irrigation belt forming punching device

3 vacuum sizing device

4 Thetraction device

5 double station coiling device

Specifications:

Applications:

The Labyrinth type drip irrigation belt extrusion machine mainly used in the production of labyrinth type drip irrigation belt, which is a kind of water saving irrigation in arid areas at presentthe most effective use of its water, the rate of up to 95%. Drip irrigation is higher than the water saving and production increasing effect, also can be combined with fertilizer, fertilizer efficiency is improved more than doubled. Suitable for fruit,vegetables, economic crops, greenhouse irrigation, drought and water shortage in the area can also be used in field crops irrigation. The disadvantage is the dripper easy fouling and plugging, therefore deal with the water treatment filter strict. At present, domestic equipment has been basically pass, conditional region should actively develop the drip irrigation.

Characteristics of drip irrigation belt:

1, the labyrinth drip holes and a vacuum hot pressing, the overall good adhesion, high manufacturing precision.

2, the turbulent regime more water, anti clogging ability.

3, the maze runner design, even water, up to more than 85%,laying up to 80m.

4, light weight, convenient installation and management,artificially low cost of installation.

Competitive Advantage:

1) At the main motor, forming machine, traction machine adopts frequency control, energy saving, stable operation, low noise.

2)tube diameter measurement using CCD chip and MCU micro processing chip, PWM signal control, fast speed, high reliability, stability control.

3) forming round the use of high-quality stainless steel materials and refined processing, corrosion resistance, long service life.

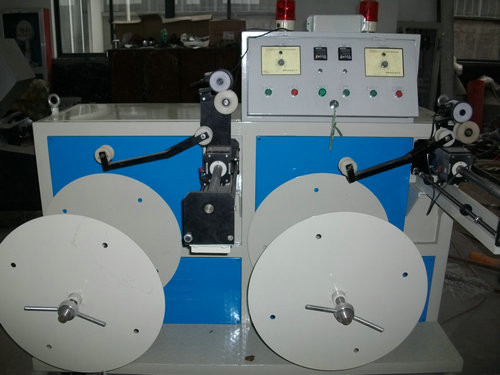

Double-winder

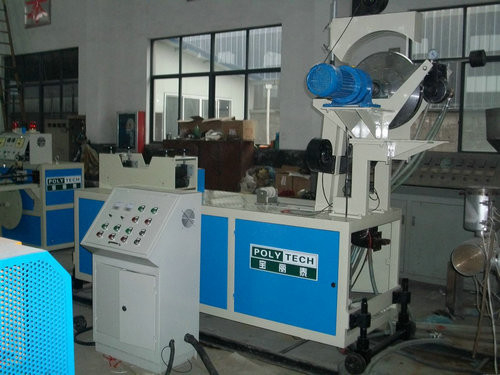

Pipe forming part
