single screw extruder hdpe pipe machine with price
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | hdpe pipe machine with price,plastic pipe extrusion machine,pipe production line |
||
|---|---|---|---|

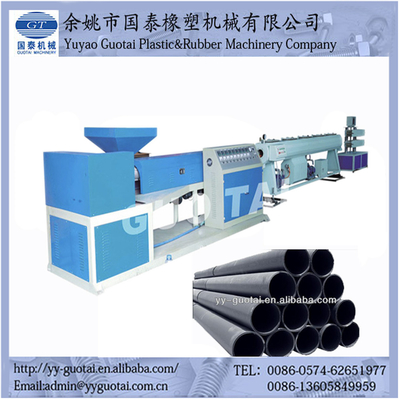

HDPE Pipe Extrusion Line
hdpe pipe machine/uhdpe pipe extrusion machine
HDPE pipe plant.
HDPE pipes manufacture unit
Application:
HDPE pipe plant can produce anti high anti high strength, anti high temperature, anti-aging, anti-chemical, good insulation hdpe pipe. The quality of this pipe is up to B/T2479-2000 and Q/ysth-1999 standard and Germany standard DIN 8061- 8062
It is the first choice for the high voltage cable protection.
Main Charaters:
This line can solve the problems of high temperature melting, high viscosity, easy-decomposition. The special designed screw, gearbox, tooling, and HMI system make the line reliable and easy operation.
| model | uhdpe63 | uhdpe160 | ||||
| pipe range(mm) | 20-110 | 110-160 | ||||
| capacity(kg/h) | 100 | 150-200 | ||||
| center height(mm) | 1000 | 1000 | ||||

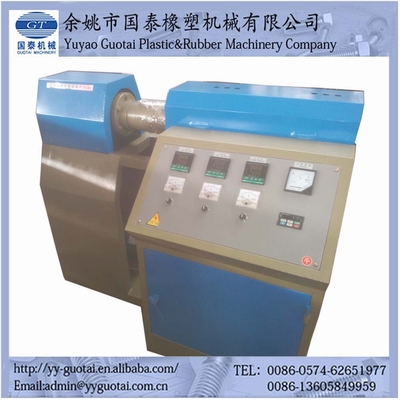

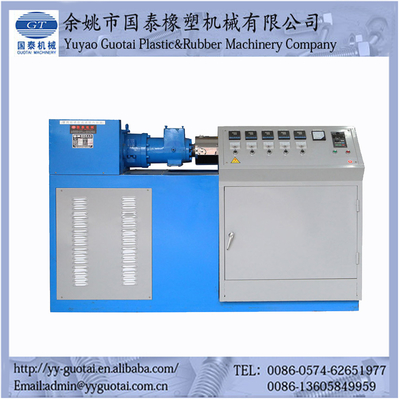

| single screw extruder | extruder model | SJ65 | SJ90 | |||
| screw diameter(mm) | 65 | 90 | ||||
| L/D | 25:1 | 25:1 | ||||
| Screw rotation speed(rmp) | 80 | 100 | ||||
| motor power(kw) | 22 | 37 | ||||
| heating power(kw) | 16 | 36 | ||||
| coolin blower power(kw) | 0.75 | 0.75 | ||||
| vacuum calibration tank | length of calibration case(mm) | 6000 | 6000*2 | |||
| vacuum degree(mpa) | 0-0.1 | 0-0.1 | ||||
| absorbing gas speed(m3/h) | 60 | 60*2 | ||||
| water pump power(kw) | 4 | 4 | ||||
| longitudinal moving motor power(kw) | 1.1 | 1.1 | ||||
| Spray cooling tank | length of spraying tank(mm) | 4000-6000 | 6000-8000 | |||
| water pump power(kw) | 4 | 5.5*2 | ||||
| haul off machine | driving power(kw) | 2.2 | 4 | |||
| max pull(N) | 7000 | 12000 | ||||
| effctive haul off length(mm) | 1500 | 2000 | ||||
| Pneumatic blade type cutter | blade diameter(mm) | 350 | 500 | |||
| driving power(kw) | 1.1 | 1.1 | ||||
| working air pressure(mpa) | 0.7-0.7 | 0.7-0.7 | ||||
| stacker | length(mm) | 6000 | 6000 | |||
