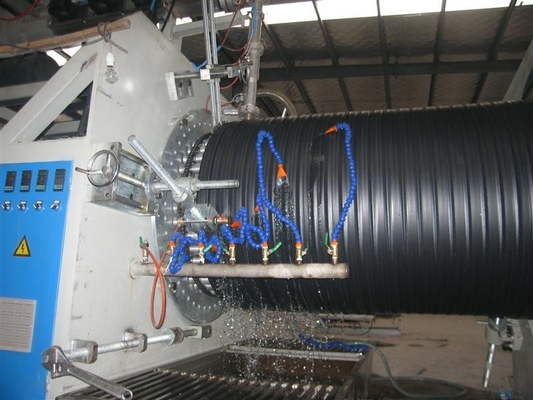

Plastic double wall corrugated pipe machine / extrusion line 200mm ~ 800mm
Quick Detail:
The Plastic double wall corrugated pipe machine is mechanotronics, with the advantages of:
1) high production efficiency;
2) reasonable structure compact;
3) convenient operation and maintenance
4) long use life etc.
Specifications:
Model |
BLT-SB160 |
BLT-SB500 |
BLT-SB800 |
BLT-SB1200 |
Extruder |
BLTS90or SJZ65/132 |
BLTS150or SJZ92/188 |
BLTS90,120 |
BLTS120,BLTS150 |
Qty of mould block |
60(6 INCH) |
30(6 INCH) |
32,33(8 INCH) |
35(8 INCH) |
(mm) Diameter of pipe |
Φ90~Φ160 |
Φ160~Φ500 |
Φ200~Φ800 |
Φ800~Φ1200 |
(m/min) Linear speed |
0.5~3.5 |
0.1~2.7 |
0.1~2.7 |
0.1~1.1 |
(kw) Total power |
10.5 |
20.5 |
28.5 |
32 |
Description:
Plastic double wall corrugated pipe machine mainly used PVC,PE as raw material to produce big-diameter double-wall corrugated pipe. This kind of pipe is light,good impact-resistance,good anti-corrosion,good heat-resistance and widely used for electricity cable protection,city drainage,agriculture irrigation,construction water delivery, etc. The die of the shaping former has high accuracy, good exchangeability of block mould, two cooling ways of water and wind is equipped, on-line end belling can be achieved to assure mechanical property of pipes. Round double-pole cutter has good cut precision, the whole line adopts Siemens PLC control system and has highly self-control ability. If you change extruder and some related components then you can get PVC big-diameter reinforcement corrugated pipe in the same line.
Competitive Advantage:
Characters of mould and auxiliary unit: the die of the shaping former has high accuracy, good exchangeability of block mould, two cooling ways of water and wind is equipped, on-line end belling can be achieved to assure mechanical property of pipes. Round double-pole cutter has good cut precision, the whole line adopts Siemens PLC control system and has highly self-control ability. If you change extruder and some related components then you can get PVC big-diameter reinforcement corrugated pipe in the same line.
Applications:
This Plastic double wall corrugated pipe production pipe can produce double-wall corrugated pipe and big-diameter reinforcement pipe, which is light,good impact-resistance,good anti-corrosion,good heat-resistance and widely used for electricity cable protection,city drainage,agriculture irrigation,construction water delivery, etc.
