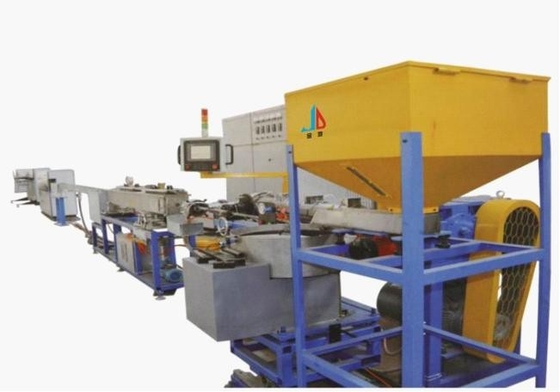

The Machine is used to produce inlaid cylindrical type drip irrigation pipe. The pipe is widely used in water-saving irrigation fields, such as greenhouse, farmland planting and green items, etc..
Main Technical Parameters
1 | Production speed | 30 to 60m/min |
2 | Pipe diameter | 6mm,12mm,16mm |
3 | Wall thickness | 0.4mm to 1.2mm |
4 | Dripper distance | 200mm to 2000mm |
5 | Extruder specification | 65mm * 30/1 |
6 | Dripper identify speed | 220pcs/min |
7 | Traction speed | 70pcs/min |
8 | Punching speed | 70pcs/min |
9 | Punching method | mechanical |
10 | Winding speed | 10 to 120m/min |
11 | Packing | 50 to 1000m/r |
12 | Installation power | 45KW |
13 | Size (L *W *H) | 30*2.5*2m |
Component of Production Line
1. Single-screw extruder
l Model: JDSJ-65
l L/D ratio: 30:1
l Material of screw and barrel: 38GrMALA
l Diameter of screw: 65mm
l Screw rotation speed: 30-140rpm
l Motor power: 22KW
l Heating power of barrel: 6KW
l Barrel heating way: casting aluminum heater
l Surface treating: ion nitriding, polished
l Maximum extruding capacit 120kg/h
l Main motor control method: frequency converter
l Temperature control method: PID
l Machine head: right-angle machine head
l Driving way: hard tooth-face speed reducer
2. Dripper feeding, screening and sorting system
l Screening method: centrifugal principle,
l Screening speed: 500pcs/min
l Rotating disk diameter: Φ800mm
l Rotating disk material: high strength aluminum ally
l Driving motor: frequency converter
l Driving motor power: 0.75kw
3. Dripper transfering and inserting
l Transferring way: pneumatic
l Inserting way: control rod movement, drip distance can be adjust
4. Vacuum calibration tank
l Vacuum bump: 1.45KW X 1 ( Siemens technique)
l Water bump: 0.5KW*2 0.2KW*1
l Tank material: high strength stainless steel model: 304
l Tank length: standard allocation, adjustable
5. Water cooling tank
l Material: high strength stainless steel model: 304
l Length: 8m(4m*2)
l Central height: 1000 mm
6. Traction machine
l Traction way: crawler, floating traction
l Lengthof tractor: 500mm
l Traction speed: 70m/min
l Driving motor: frequency converter
l Motor power: 2.2KW
l Working voltage: 0.2-0.6Mpa
7. Punching machine
l Punching method: mechanical
l Crumb discharging way vacuum crumb absorption
l Driving power of vacuum pump: 1.45KW
l Pumping speed: 70pcs/min
l Motor power: 400W Delta servo
8、Winding machine
l Winding method: two-position automatic winding
l Rolling length: ≤2000m
l Winding motor: servo
l Driving power: 3kw
9. Electricity cabinet
l Temperature control method: Delta temp control module, PLC control
l Low voltage electrical equipment brand: Schineider
l PLC, touch screen brand: Delta
l Frequency converter, servo brand: Delta
