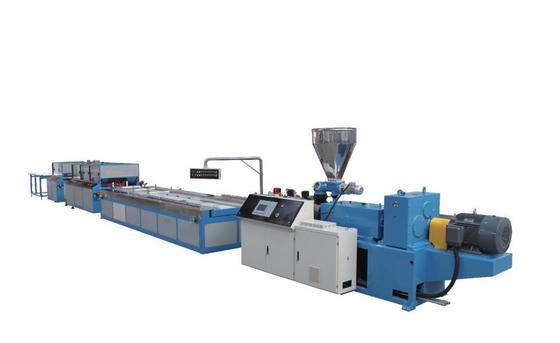

PE,PP,PVC wood plastic board extrusion line and wood plastic composite profile production

Quick Details

• Condition:New
• Application:Profile
• Plastic Processed:WPC
• Screw Design:Double-screw
• Automatic Grade:Automatic
• Place of Origin:Jiangsu, China (Mainland)
• Brand Name:Acemien Machinery
• Model Number:ACM-YF1200
• Voltage:380V
• Power(W):110LW
• Dimension(L*W*H):28*1.5*2(m)
• Weight:9000kg
• Certification:CE/ISO
• After-sales Service Provided:Engineers available to service machinery overseas
• Name:wpc profile machine
• Application:window profiles, wide doors, elbowboards
• Warranty:12 months
• Motor:SIEMENS
• Frequency Converter:ABB
• Temperature controller:Omron
• Gearbox:Deling
• Screw& barrel:38CrMoAlA
• Producing Time:30~45days
• Production Capacity:400 kg/h

Packaging & Delivery

Specifications

wpc profile machine
1.max width:1200mm
2.capacity:80-600kg/h
3.CE standard
4.test before delivery

wpc profile machine

Description

PVC profile extrusion line is mainly used to produce PVC window profiles, wide doors, elbowboards, multi-hole threading pipes(4-hole, 6-hole, 7-hole, 9-hole, etc). The line can adopt different twin screw extruders according to different profiles, sections and moulds, and also equip with vacuum forming table, haul-off machine, cutter, stacker or other auxiliary machines

Product Specification

Application:

1. The finished product is mainly made from PVC, PE, PP wooden powder, cotton stalk, rice chaff and other natural fibers.

2. Plastic-wood compounded finished product is a new type of ideal environment-friendly material, which is made from PVC resin, polyolefin plastic and cellulose(straw, cotton stalk, wooden power, rice chaff, etc) with special procession and treatment.

3. It has such advantages as rot prevention, non-deformation, non-shading, pest resistant, fire-proof, split proof, etc.

4. It can be processed by a sawing machine or a planning machine.

5. It not only has natural properties of wood, but also has many colors for you to choose as per your demand.

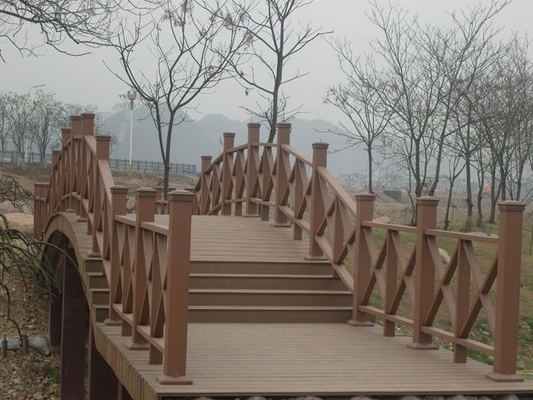

6. It is widely used in making rail, passages, stairs, outdoor desk and chair, flower frame, pools etc. in addition, it can be used for indoor plate decoration , kitchen cabinet board, tray etc.

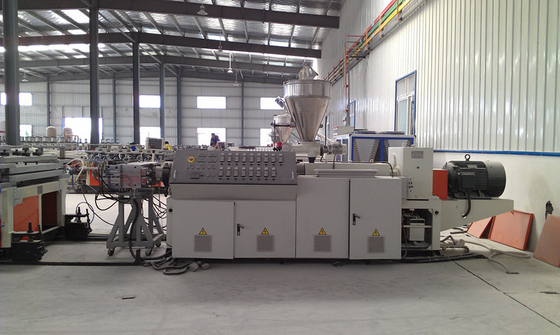

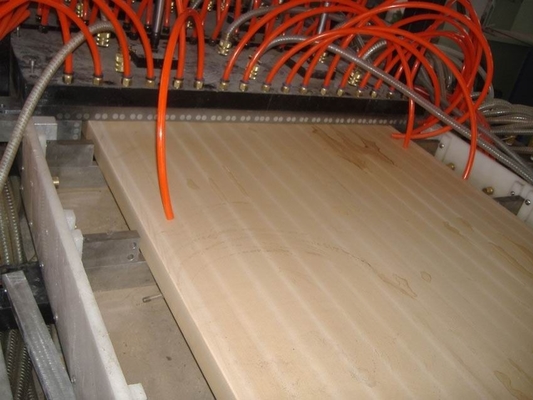

Detail of machine

Packaging & Shipping

Why choose us:

1. Low cost:

The entire machine, we make it ourselves to reduce the cost of our customer.
2. Genuine product with excellent quality:

We choose our material very strict,
all the material come to our factory must pass the quality test
substandard goods are returned to the supplier.
3. Engineers available to serve oversea:

4. Quick delivery:

The company provides just in time delivery with its streamlined supply chain
5.cost saving

We take strong attention to every detail in the manufacturing process,
the quality control in our factory is very strict,
all defective semi-manufactures must be treated again or reject.
all of machine must be checked out, then delivered to our customer.
all above that pushing up the price,
what we want to do is give our customer a good quality product with stable working and long lived.
