Custom Multi Layer Plastic Corrugated Roof Sheet Machine / Plastic Sheet Extrusion Line 650kg/h
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Corrugated Roof Tile Roll Forming Machine,Corrugated Plastic Roof Making Machine,Roof tile making machine |
||
|---|---|---|---|

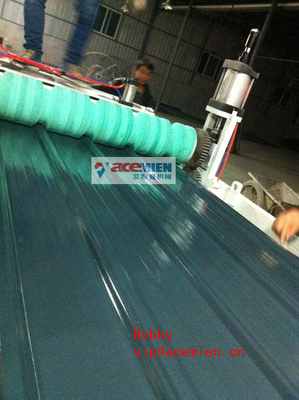

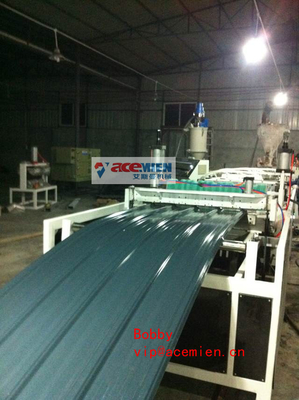

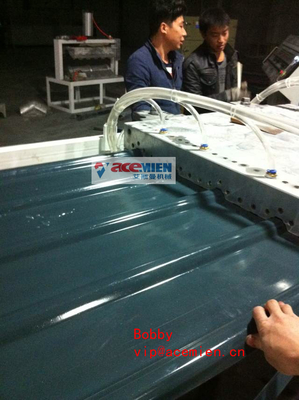

PVC Corrugated tile making machine:
Now the trend is that plastic tile slowly replace metal tile or concrete tile or ceramic tile.
Because plastic tile have better heat resistance and soundresistancethan metal tile, anti-corrosion , lower noise,longer life.
1)We make PVC+ASA two layer co-extrusion Roofing tile .ASA layer for anti-UV for longer life
2)Corrugated tile width 920mm/1130mm,thickness 1.5-3mm adjustable.
We can produce the machine as your requested product size.
3)plastic Corrugated tile have the same product structure with metal tile.

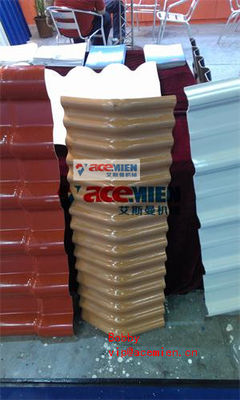

4)Trapezoid or Round shape for your choice.
5)The turnkey machine contain main tile extrusing machine,Ridge tile forming machine,mixer,crusher,pulverizer... The machine is a Turnkey project.

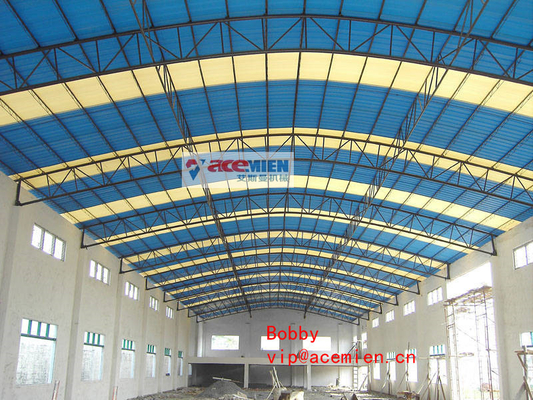

6)Plastic Corrugated tile are used for Roofing, can be used for factories, warehouses, sheds, farmers market, hoardings, walls, temporary shops, sheds and other very suitable insulation
7)installation is very easy,less supporting .
Machine list:
No. | Machine | Qty. | |
1 | Screw loader for extruder | 1set | Main tile extrusion line Ridge tile forming |
2 | SJZ92 conical twin-screw extruder(PVC) | 1set | |
3 | Vacuum loader and drying hopper | 1set | |
4 | SJ50/30 single screw extruder(ASA) | 1set | |
5 | Extrusion mould and distributor | 1set | |
6 | Calibration mould and trimming device | 1set | |
7 | Haul off unit | 1set | |
8 | Cutter | 1set | |
9 | Stacker | 1set | |
10 | Ridge tile Oven | 1set | |
11 | Ridge tile Forming machine | 1set | |
12 | Screw loader for SRL-Z300/600 Mixer | 1set | Auxiliary equipment |
13 | SRL-Z300/600 Mixer unit | 1set | |
14 | PC400 Crusher | 1set | |
15 | SMP400 Pulverizer | 1set |
We specialized in plastic Roofing tile making machine.
Expect for your inquiry.
With Regards!
Bobby
